| Parameter | Specification |
|---|---|

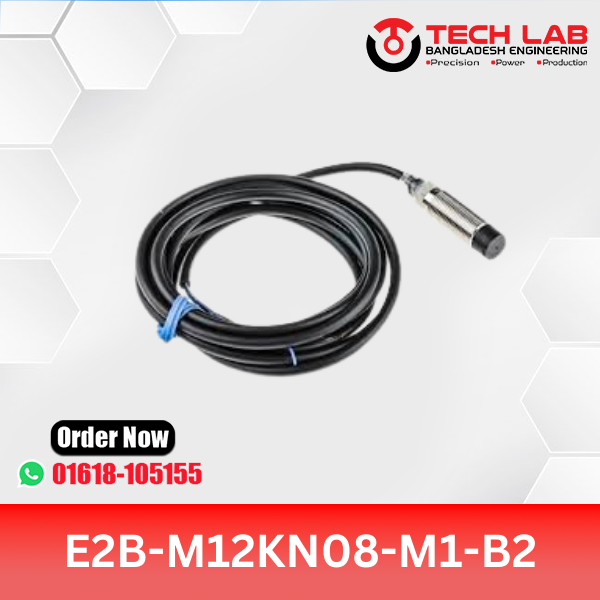

| Model | E2B-M12KN08-M1-B2 |
| Sensor Type | Inductive Proximity Sensor |
| Output Configuration | PNP, Normally Closed (NC) |
| Sensing Distance | 8 mm |
| Mounting Type | Non-Flush / Unshielded |
| Sensor Head Diameter | M12 (12 mm) |
| Body Length | 51 mm (Short body) |
| Standard Sensing Object | 8 × 8 × 1 mm (Ferrous) |
| Differential Travel | 10% max. of sensing distance |
| Connector Type | M12 Connector |
| Power Supply Voltage | 10 to 30 VDC (±10% ripple p-p) |
| Current Consumption | Max. 10 mA |
| Response Frequency | 1,000 Hz |
| Indicator | Yellow LED (Operation Indicator) |
| Ambient Temperature | -25 to 70°C |
| Ambient Humidity | 35% to 95% RH |
| Voltage Influence | ±1% max at 24 V ±15% |
| Protection Circuit | Output reverse polarity, power supply reverse polarity, surge suppressor, short-circuit protection |
| Degree of Protection | IP67 |
| Certification | EMC (EN60947-5-2) |
| Material – Case | Stainless Steel (SUS 303 / 1.4305) |
| Material – Sensing Surface | PBT |
| Material – Clamping Nut | Brass, nickel plated |
