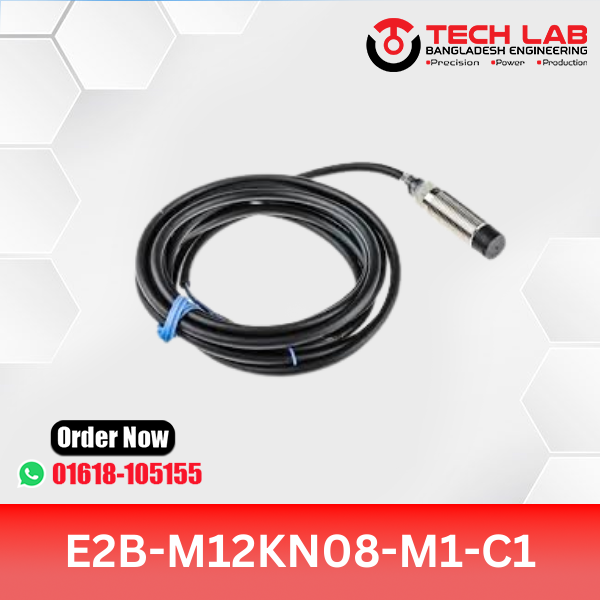

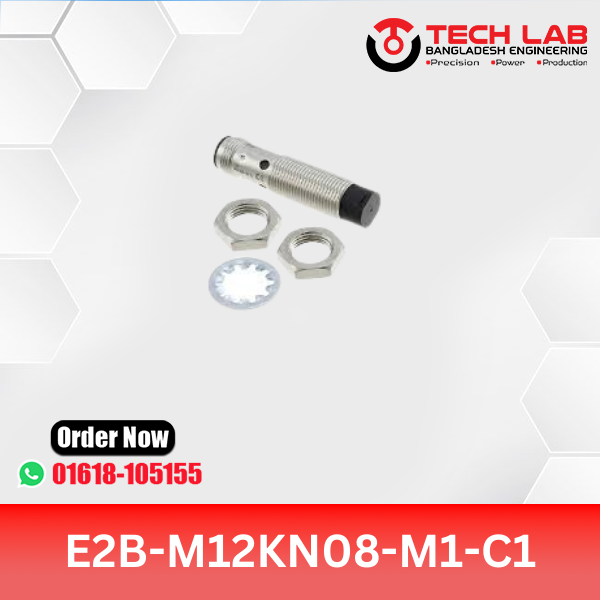

OMRON E2B-M12KN08-M1-C1 – M12 Inductive Proximity Sensor, NPN NC Output, 8mm Sensing Distance, IP67

Brand
OMRON
(0 reviews)
  • 8mm Long Sensing Distance – Ideal for non-contact metal detection
  • NPN NC Output – Suitable for Negative Logic applications
  • M12 Size, Unshielded Body – Easier mounting in various industrial conditions
  • Robust Build Quality – Nickel-plated brass housing for durability
  • IP67 Waterproof Rating – Suitable for harsh environments
  • Pre-wired Type (2m Cable) – Ready to install and connect
  • Global Standard Model – Compatible with most Omron control systems
Share
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description

✅ Technical Specifications:

ParameterDetails
BrandOMRON
ModelE2B-M12KN08-M1-C1
Sensor TypeInductive Proximity Sensor
Mounting TypeUnshielded
Body SizeM12
Sensing Distance8 mm
Setting Distance0 to 6.5 mm
Output TypeNPN
Output ConfigurationNormally Closed (NC)
Power Supply10 to 30 VDC (including 10% ripple p-p)
Protection RatingIP67
MaterialNickel-plated Brass
Connection MethodPre-wired Cable (2m length)
Operating Temperature-25°C to +70°C (no freezing)
Standard ComplianceCE, RoHS
