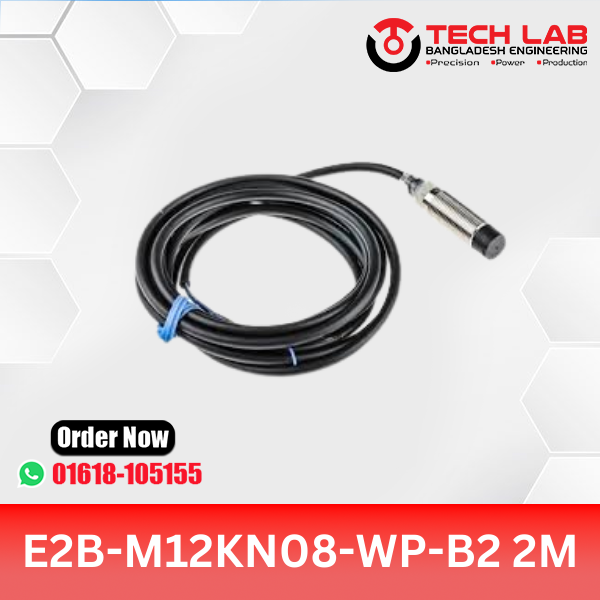

OMRON E2B-M12KN08-WP-B2 – M12 Inductive Sensor, PNP NO Output, 8mm Sensing Distance, IP67, 2M Cable

Brand
OMRON
(0 reviews)
  • 8mm Long Sensing Distance – Accurate metal detection from a safe range
  • PNP Normally Open (NO) Output – Ideal for sink-type input logic in control systems
  • Pre-wired 2M Cable – Simplifies connection for automation panels and machinery
  • IP67 Rated – Resists water, dust, and oil for reliable outdoor/industrial use
  • Fast Response Time – Suitable for high-speed machine operations
  • Unshielded M12 Body – Offers wide detection area, easier alignment
Share
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description

✅ Technical Specifications:

Parameter Details
Brand OMRON
Model E2B-M12KN08-WP-B2 (2M)
Sensor Type Inductive Proximity Sensor
Mounting Type Unshielded
Body Size M12 Cylindrical
Sensing Distance 8 mm
Setting Distance 0 to 6.5 mm
Output Type PNP
Output Configuration Normally Open (NO)
Power Supply 10–30 VDC (with ≤10% ripple)
Connection Type Pre-wired Cable (2 meters)
Material (Case) Nickel-plated Brass
Protection Rating IP67
Operating Temp. Range -25°C to +70°C (no freezing)
Response Frequency 800 Hz
Approvals CE, RoHS Compliant
Typical Applications Conveyors, Packaging Machines, Robotics, PLC I/O
