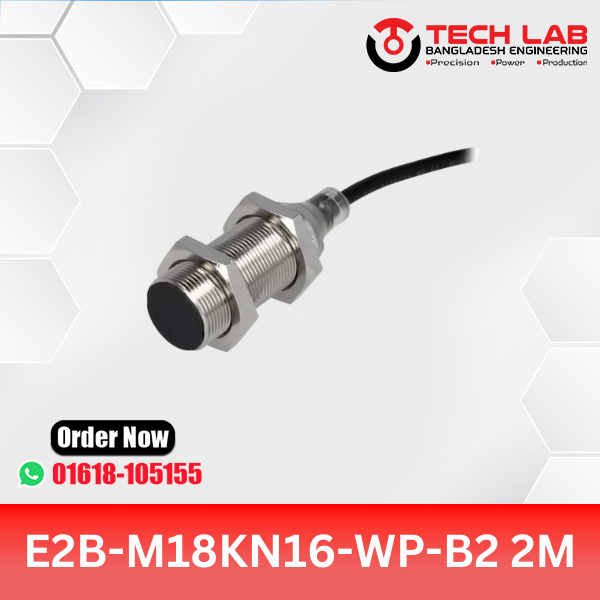

OMRON E2B-M18KN16-WP-B2 – M18 Unshielded Inductive Sensor, NPN NC Output, 16mm Sensing Distance, IP67, 2M Cable

Brand
OMRON
(0 reviews)
  • 16mm Long Sensing Distance – Effective for distant metal object detection
  • NPN Normally Closed Output – Ideal for fail-safe circuits and logic interlocks
  • Unshielded M18 Design – Wider detection area for flexible mounting zones
  • 2M Pre-wired Cable – Simple installation, no need for extra connectors
  • IP67 Rated – Withstands dust, water, and oil for rugged environments
Share
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description

✅ Technical Specifications:

SpecificationDetails
BrandOMRON
ModelE2B-M18KN16-WP-B2 (2M Cable)
Sensor TypeInductive Proximity Sensor
Mounting TypeUnshielded
Body SizeM18 Cylindrical (Standard Length)
Sensing Distance16 mm
Setting Distance0 to 13 mm
Output TypeNPN
Output ConfigurationNormally Closed (NC)
Power Supply10–30 VDC (≤10% ripple)
Connection TypePre-wired Cable (2 meters)
Housing MaterialNickel-Plated Brass
Protection RatingIP67
Operating Temperature-25°C to +70°C
Response Frequency100 Hz
CertificationsCE, RoHS
ApplicationsIndustrial automation, metal detection, conveyor systems, PLC inputs in tough conditions
